Hydraulic Shearing Machine

+91-9978601880   info@marutipowerpress.com

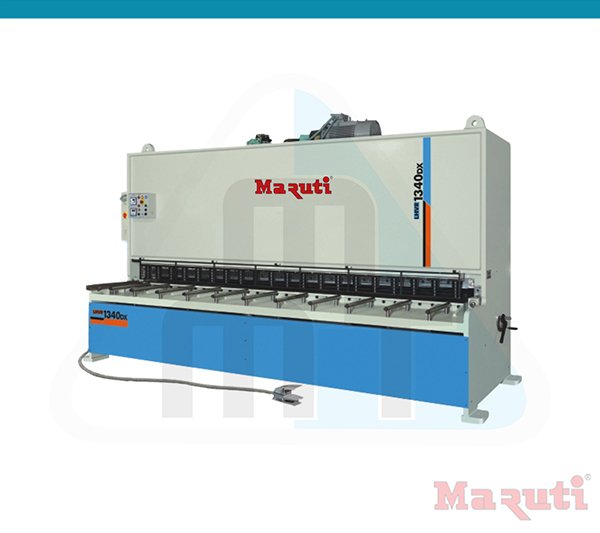

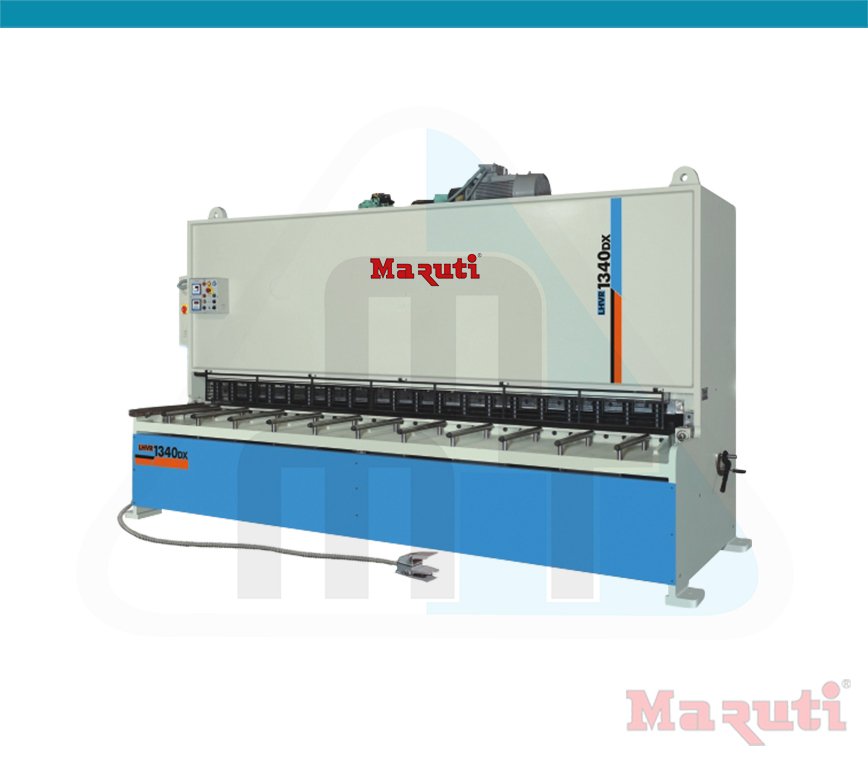

  • Hydraulic Variable Rake Angle Sharing Machine Hydraulic Variable Rake Angle Sharing Machine Manufacturer
Hydraulic Variable Rake Angle Sharing Machine Exporter NC/CNC Hydraulic Variable Rake Angle Sharing Machine

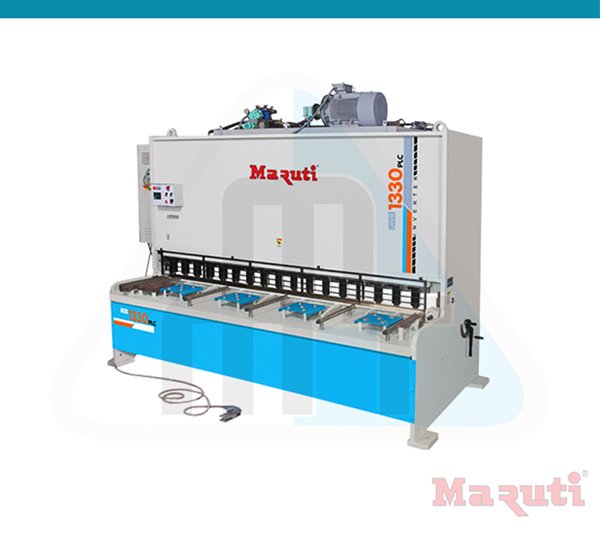

NC Hydraulic Shearing Machine

NC/CNC Hydraulic Variable Rake Angle Shearing Manufacturer

NC Hydraulic Shearing Machine

send inquiry download pdf

Description

MARUTI MACHINE TOOLS offers Hydraulic Variable Rake Angle Shears which is rated as one of the best in the markets due to its tensile strength and robust build. These machines are reliable and high performance based. These have mono-block rigid welded steel structure to deflect tensile movement.

Their blade gaps adjusted with levers for clean cuts and its hardened rollers guide beam for constant blade gap. The rake angle is adjustable to suit thickness and material; the sheets are clamped hydraulically before cut starts.

The NC Hydraulic Shears that we manufacture is a product which speaks for itself and is highly trusted worldwide for its optimum characteristics. Due to the inviolable quality of our machines and their terrific lifelong performance we have become one of the finest Hydraulic Shearing Machines Exporters in India.

FEATURE

  • Moving beams synchronised by differential cylinders
  • Shearing-clamping forces adjustible to suit jobs
  • Both blades premium HCHCr,with four usable edges
  • Cutting lengths and positions adjustible for shorter jobs
  • Beam returns on releasing foot switch for smaller cuts
  • Cutting area illuminated for clear view of blades
  • First two hold downs spaced closer at both ends

Specifications

  • Squaring arm 1000mm at left with hardened lines
  • Squaring arm 600mm at right helps distribute wear
  • Front gauging with stopsm, scale on squaring arm
  • Hardened rods recessed table for easy sheet feading
  • Sheet supports 1000mm help supports long plates
  • Ramp on rear slides cut out sheets outside shear area
  • Foot switch movable for operation from safe position
  • Finger safety gaurd with clear view of lighted cutting area
  • Efficient compact power pack with minimum piping
  • Electricals neatly wired-cabled for trouble shooting

TECHNICAL SPECIFICATIONS

Model Shearing
Length mm 		Shear Thic.
Rake Angle/
(Min./Max.)		 Rake
Angle 		Rake
Angle
Range 		Strokes/Minute
at Min. & Max.
Rake Angle 		Hold
downs		 Holding
Force
Kgs. 		Power
H.P. 		Over all
Diamensions
in mm (L x W x H) 		Approx.
Weight
Kgs.
M.S. S.S.
MHVR 325 2500 3.15/4 2/3 1°15' 0.5-2° 28-13 13 2500 5 3150 × 2000 × 2400 3800
MHVR 330 3000 3.15/4 2/3 1°15' 0.5-2° 24-9 16 2500 5 3500 × 2000 × 2400 4400
MHVR 412 1250 4/6 3/4 1°37’ 0.5-3° 33-17 5 4000 5 2000 × 2000 × 2400 2700
MHVR 415 1500 4/6 3/4 1°37' 0.5-3° 30-15 8 4500 5 2250 × 2000 × 2400 3200
MHVR 420 2000 4/6 3/4 1°37' 0.5-3° 28-13 11 6200 7.5 2750 × 2000 × 2400 3500
MHVR 425 2500 4/6 3/4 1°37' 0.5-3° 26-8 13 8000 7.5 3400 × 2350 × 2450 5200
MHVR 430 3000 4/6 3/4 1°37' 0.5-3° 24-6 16 10000 10 4000 × 2350 × 2450 6000
MHVR 440 4000 4/6 3/4 1°45' 0.5-3° 22-6 20 12000 10 4500 × 2350 × 2450 8500
MHVR 615 1500 6/8 4/6 1°45' 0.5-3° 24-8 9 6600 10 2250 × 2350 × 2500 4000
MHVR 620 2000 6/8 4/6 1°45' 0.5-3° 22-7 11 6500 10 2750 × 2350 × 2500 4300
MHVR 625 2500 6/8 4/6 1°45' 0.5-3° 28-8 14 8500 15 3400 × 2350 × 2500 6200
MHVR 630 3000 6/8 4/6 1°45' 0.5-3° 24-6 16 10800 15 4000 × 2350 × 2500 7000
MHVR 640 4000 6/8 4/6 2° 0.5-3° 24-6 20 13600 20 5100 × 2700 × 2800 8400
MHVR 815 1500 8/10 6/8 2° 0.5-3° 22-10 9 10500 15 2250 × 2600 × 2650 5000
MHVR 820 2000 8/10 6/8 2° 0.5-3° 18-8 11 12500 15 2750 × 2600 × 2650 5500
MHVR 825 2500 8/10 6/8 2° 0.5-3° 24-8 14 16300 20 3500 × 2600 × 2650 6800
MHVR 830 3000 8/10 6/8 2° 0.5-3° 20-6 16 18500 20 4200 × 2600 × 2650 7700
MHVR 840 4000 8/10 6/8 2° 0.5-3° 20-8 20 23000 25 5200 × 2900 × 2800 13500
MHVR 1015 1500 10/13 8/10 2° 0.5-3° 20-10 9 10500 15 2250 × 2650 × 2700 5500
MHVR 1020 2000 10/13 8/10 2° 0.5-3° 18-8 11 12600 15 2750 × 2650 × 2700 6000
MHVR 1025 2500 10/13 8/10 2° 0.5-3° 24-8 14 17500 20 3600 × 2650 × 2700 8000
MHVR 1030 3000 10/13 8/10 2° 0.5-3° 20-6 16 20000 20 4200 × 2650 × 2700 10500
MHVR 1040 4000 10/13 8/10 2° 0.5-3° 18-6 20 25000 30 5200 × 2900 × 2900 15200
MHVR 1320 2000 13/16 10/13 2° 1-3° 13-5 11 16500 20 2750 × 2650 × 2950 7000
MHVR 1325 2500 13/16 10/13 2° 1-3° 15-10 13 32000 25 3600 × 2650 × 2950 9600
MHVR 1330 3000 13/16 10/13 2° 1-3° 12/06/15 16 37000 25 4200 × 2650 × 2950 11800
MHVR 1340 4000 13/16 10/13 2° 1-3° 10/04/15 20 22000 30 5200 × 3000 × 3050 17800
MHVR 1620 2000 16/20 13/16 2° 1-3° 13-7 11 20000 25 2750 × 2950 × 3150 12000
MHVR 1625 2500 16/20 13/16 2° 1-3° 15-8 13 40000 30 3600 × 2950 × 3150 12000
MHVR 1630 3000 16/20 13/16 2° 1-3° 12/06/15 16 43500 30 4250 × 2950 × 3150 15300
MHVR 1640 4000 16/20 13/16 2° 1-3° 10/04/15 20 30000 30 5200 × 3050 × 3500 21500
MHVR 2020 2000 20/25 16/20 2° 1-3° 16-8 11 32000 40 2900 × 2950 × 3150 17000
MHVR 2025 2500 20/25 16/20 2° 1-3° 15-8 13 48000 40 3600 × 2950 × 3150 18000
MHVR 2030 3000 20/25 16/20 2° 1-3° 12/06/15 16 52000 40 4250 × 2950 × 3150 20000
MHVR 2040 4000 20/25 16/20 2° 1-3° 10/04/15 20 30000 50 5200 × 3050 × 3500 24000
Capacities rated for M.S. of U.T.S. 45kg/mm² Yield 28 kg/mm² & S.S. of U.T.S. 72 kg/mm² Yield 45 kg/mm². Machine will not cut any thickness variation beyond rated capacity for any length. Right to change specification, features, accessories without notice reversed. Compliance with safety requirements as per local regulations is responsibility of the user. All Dimensions are in mm.

Optional Accessories

  • Sheet front feeding system
  • NC back gauge with ball screw
  • Hydraulic rear sheet support
  • Automatic control shearing
  • Sheet rear stacking system
